Bluetooth Onyx EZR Home Bundle Listen to SiriusXM Radio at home via Bluetooth with this bundle. The bundle includes the new SiriusXM Onyx EZR Receiver with Bluetooth Dock and home accessories. Simply install the indoor/outdoor antenna, connect the power, and setup the Bluetooth dock to transmit to your home stereo and you are all set. To learn more about installing a SiriusXM Radio home antenna indoors and outdoors visit our help center. The SXBTD1V1 is the only SiriusXM™ Radio Bluetooth™ Dock on the market today. Onyx EZR Receiver Overview

• TuneMix™ allows you to blend different channels
• One-Touch Jump™ to the previous channel you were listening to
• Easy-to-read, large high-resolution display
• Browse what’s playing on other channels without changing stations
• Listen in multiple vehicles, at home, in the office or outdoors
• Works on the XM network
• Easy, do-it-yourself installation
• Hear SiriusXM™ through your existing home stereo
• Easily lock and unlock channels with mature content
• View artist or show name, song or program title and content or channel information on an easy-to-read large high-resolution display
• Store up to 10 of your favorite channels for one touch access

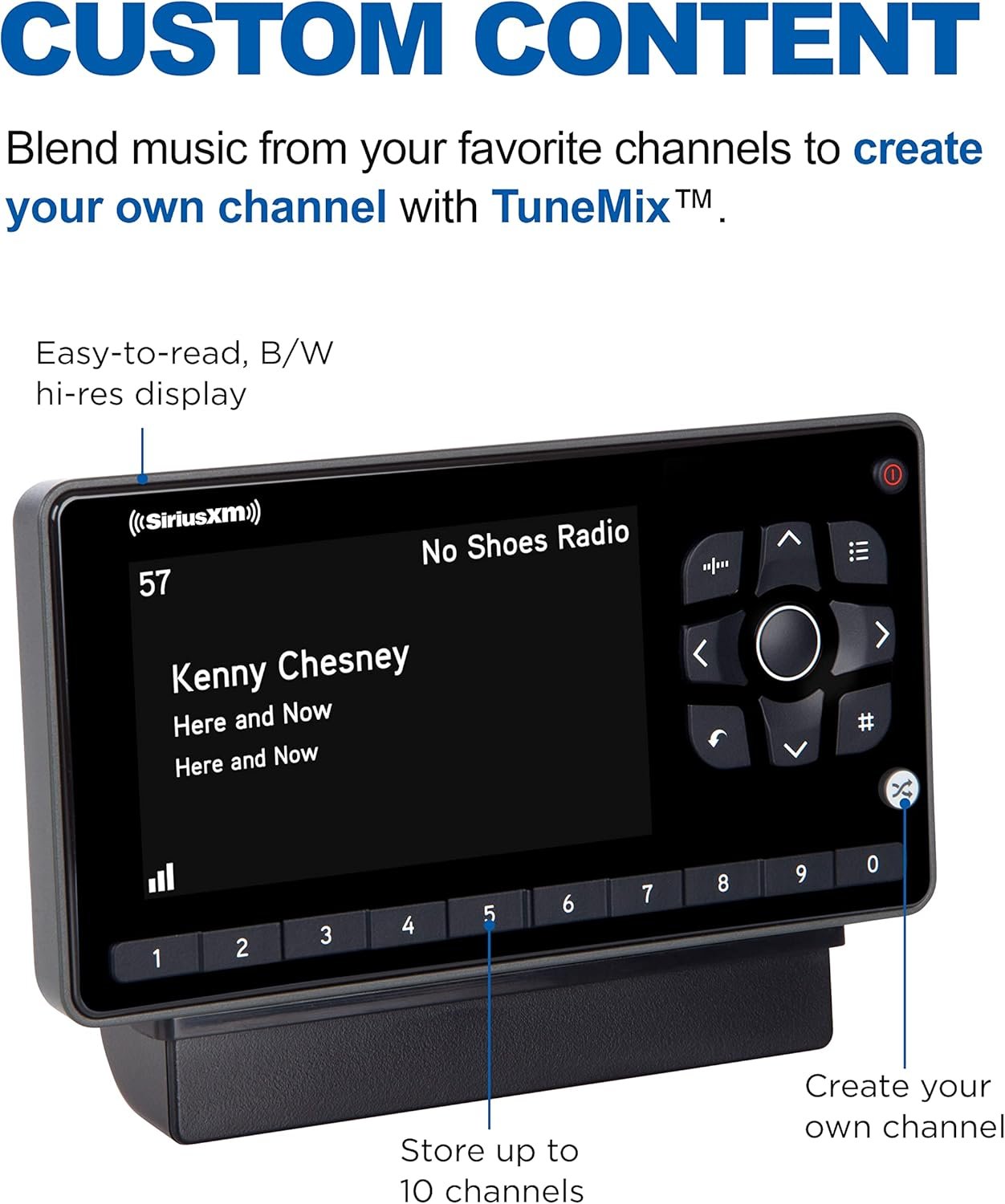

• Create your own music channel that’s a blend of channels with TuneMix™
• Easily lock and unlock channels with mature content
• Browse what’s playing on other channels while listening to the current one
• One-Touch Jump™ to the previous channel to which you were listening
• Listen in multiple vehicles, at home, in the office or outdoors
• Hear SiriusXM™ through your existing vehicle stereo with easy, do-it-yourself installation

Bluetooth Dock Overview

• Dock and Play Bluetooth SiriusXM™ Radio Dock (based on the XM second generation vehicle dock)
• Simple Bluetooth operation with a single button and two-color LED lights
• One touch Bluetooth pairing and on/off functions
• Compatible with all SiriusXM™ Radios and legacy XM hi-band Radios (Sirius Radios not compatible)
• Compatible with SiriusXM accessories such as Dash and Vent Mounts, PowerConnect Power, Adapter, Aux In Cable, and FM Direct Adapter
• Dock and Play Bluetooth SiriusXM Vehicle Dock based on the XM second generation vehicle dock*
• Compatible with all Bluetooth 4.1 A2DP compliant Bluetooth vehicle stereos

Technical Specs

• System Power Requirements: 9-16 V DC, 500 mA (max)
• Operating Temperature: -4°F to +140°F (-20°C to +60°C)
• Audio Output: 1.0 Vrms (max)
• Onyx EZR Radio Dimensions: 5.0 in (W) x 2.7 in (H) x 0.72 in (D) (128 mm (W) x 68 mm (H) x 18.5 mm (D))
• Receiver Weight: 3.9 oz (111 g)
• Dock Weight: 1.6 oz (46 g)
• Dock Antenna Connector: SMB male
• Power Adapter Weight: 2.4 oz (69g)
• Antenna Connector: SMB female, right angle
• Antenna Cable Length: 20 ft (7.0 m)
• Aux Cable Length: Approximately 4 ft (1.2 m)
• Model #: SXEZR1H1-BTK
• Manufacturer: SiriusXM™ Radio

Frequently Asked Questions (FAQs) Q: Who should use this SiriusXM Bluetooth Vehicle Dock? A: Customers who have a vehicle with a stereo/headunit which has Bluetooth capability but does NOT have an auxiliary input (AUX). Important!

• If your vehicle stereo/headunit has an AUX input you don’t need the Bluetooth Vehicle Dock. Use the AUX connection for the SiriusXM audio.

Q: Which vehicle stereos/headunits is the Bluetooth Vehicle Dock compatible with? A: Most vehicle stereos/headunits with Bluetooth, model year 2016 and newer, are compatible, if they can support two simultaneous Bluetooth cellphone connections. Important! Before purchasing the Bluetooth Vehicle Dock check that your vehicle stereo/headunit can do following:

• You can connect two different cellphones to your vehicle stereo/headunit at the same time, where one cellphone is connected to the vehicle stereo/headunit for the phone and the other cellphone is connected to the vehicle stereo/headunit as a media device.
• If your stereo/headunit can support two simultaneous Bluetooth cellphone connections as described above, then your stereo/headunit is compatible with the Bluetooth Vehicle Dock and your stereo/headunit will switch between the Bluetooth Vehicle Dock and your phone for calls.
• If your stereo/headunit cannot support two simultaneous Bluetooth cellphone connections as described above, then your stereo/headunit is probably not compatible with the Bluetooth Vehicle Dock. While you may be able to connect the Bluetooth Vehicle Dock to your stereo/headunit for the SiriusXM audio, you will not be able to make hands-free cellphone calls using the stereo/headunit while the Bluetooth Vehicle Dock is connected via Bluetooth for SiriusXM audio.

Q: What is included with the Bluetooth Vehicle Dock? A: The Bluetooth Vehicle Dock only includes the Bluetooth Vehicle Dock and a Quick Start Guide.

• No SiriusXM radio or other accessories are included because you will use your current SiriusXM radio and accessories you already have, or you must purchase those separately.

Q: What do I need to use this Bluetooth Vehicle Dock? A: A SiriusXM satellite radio with vehicle kit, which includes all of the following:

• XM satellite radio receiver such as models: Edge, Onyx, Onyx EZ, Onyx EZR, OnyX Plus, Xpress RCi
• Satellite Radio Antenna
• PowerConnect Power Adapter, USB Power Cable, or 5VHOMEPC AC Power Adapter
• Vent mount and dash mount with 4 screws or other mounting solution with the 4 screm AMPS patter or one of our mounting plates

Q: Does the Bluetooth Vehicle Dock work with the existing vent, dash, or windshield mount for my currently installed dock? A: Yes, The Bluetooth Vehicle Dock uses the exact same mounting method as the SiriusConnect Vehicle Dock, and will work with the existing vent, dash, and windshield mounts that attach with 4 screws to your existing vehicle dock. Important!

• The Bluetooth Vehicle Dock is NOT compatible with T-mount style vent and dash mounts.
• But you can purchase an adapter plate and screw pack that will allow your mount to connect to the bluetooth receiver.

Q: Which SiriusXM satellite radios is the Bluetooth Vehicle Dock compatible with? A: The Bluetooth Dock is compatible with XM satellite radios that receive the XM high-band satellite signal. Examples are: Edge, Onyx, Onyx EZ, Onyx Plus, Onyx EZR, and Express RCi satellite radios. Important!

• The Bluetooth Vehicle Dock is NOT compatible with the legacy Sirius branded satellite radios that receive the Sirius low-band satellite signal. Examples are: Starmate 8 and Stratus 7 satellite radios.
• The Bluetooth Dock is NOT compatible with the Sirius XM Mirge satellite radio.

Brand	SiriusXM
Color	SiriusXM SXEZR1H1 XM
Special Feature	Portable
Connectivity Technology	Auxiliary
Product Dimensions	8.4″L x 7″W x 3″H
Tuner Technology	Satellite
Style	Satellite Radio + Home Kit
Power Source	Corded Electric
Radio Bands Supported	1-Band
Included Components	Home dock, XM Onyx EZR Satellite Radio Receiver, 3′ stereo audio cable, Indoor/outdoor home antenna, Power adapter, Remote controlHome dock, XM Onyx EZR Satellite Radio Receiver, 3′ stereo audio cable, Indoor/outdoor home antenna, Power adapter, Remote control
